►SC Serial: Standard Slip Rings Capsule
●SC serial Slipring with 22mm outer diameter, offer 6,12,24 channels.
●Aluminium & Plastic shell for option.
● It can be used in power,vidio,and many kinds of Bus.
●gold to gold ,lower contact resistance and long life,fit for weakly control signal。

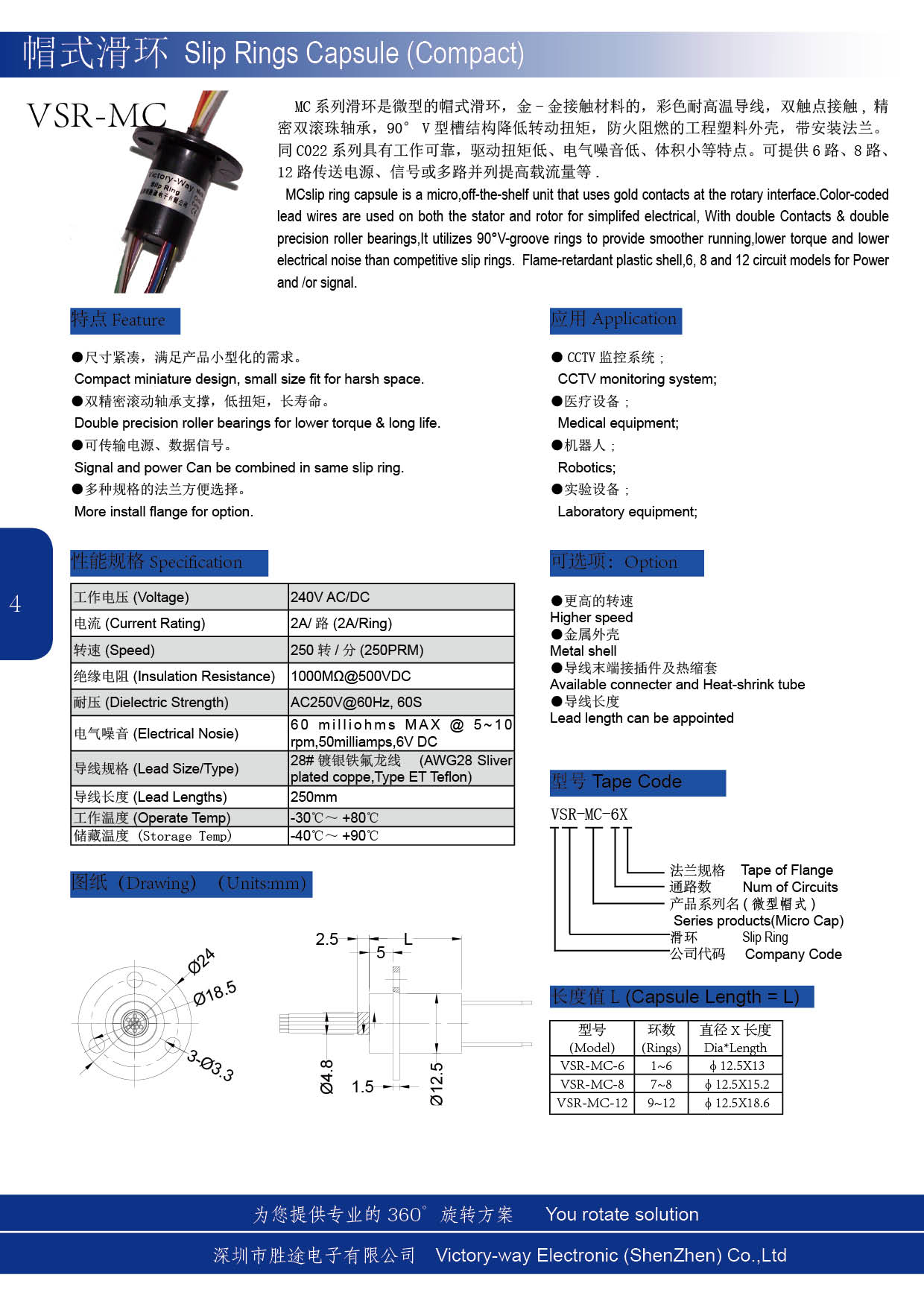

►MC Serial: Micro Slip Rings Capsule
●MC serial Slipring with 12.5mm outer diameter, offer 6,12,24 channels.
●Aluminium & Plastic shell for option.
●It can be used in power,vidio,and many kinds of Bus.
●gold to gold ,lower contact resistance and long life,fit for weakly control signal。
►T Serial: Slip Rings with Through-Bores
●T serial silpring with a through-bore for routing of hydraulic or pneumatic lines or driver shaft.
●Multiple circuit confgurations for power & data signals.
●Using fibre brush contact technology,lower torque and lower electrical noise than competitive slip rings. .
●Aluminium alloy body.
●High speed type for option,up to 2500RPM.
●Higher protection class,up to IP68.
●Flange for install and Style of lead exits for option.
►P Serial: Pan Cake Slip rings
●P Series slip ring specifically limited in the height direction of rotation system；
●Use of advanced fiber technology or precious metal brush block means of contact,,lower torque and lower electrical noise.
● Multiple circuit confgurations for power & data signals.
● Ultra-thin design,the thickness reached 15 mm
● Center bore size can be option.
►H Serial: High Current Slip Rings
● H series slip rings are compact, cost effective mercury free slip rings designed for industrial manufacturing.
●Standard spade terminals allow quickly installation.
●mercury free slip rings .
●Samll size.
●suited for use in the food and packaging
►VSR-W Serial: Slip rings for wind turbine
We provide slip ring for wind turbine, including use control system slip ring of 2Mw wind turbine to micro wind generator slip ring. As the wind power system are unique, we targeted design of strong motion, resistance to large temperature range, without maintenance, high-reliability of slip ring for wind turbine ,to meet the poor working environment and without the need for regulatory requirements
►Combine Slip Rings (Fluid rotary joints )
We offer many kinds of combine slip ring,such as FORJ(Fiber optic rotary joint),fluid rotary joints,encoder,etc.Those parts can be fixed in the slip ring,or fit at the side of slip ring,to pass the singles & energy.simple, compact design.
|
|
Mini Through-Bores Slip rings（TC）
