Description：
HS-FA2X1/2-S24-SF bybrid slip ring was designed for setup at the end of shaft or side of the machine, it’s fit for passing fluid +signal or low current power, the slip ring was set in the body of rotary joint, the wire of rotor was lead out from the center . Stator side flange for setup.
Type：

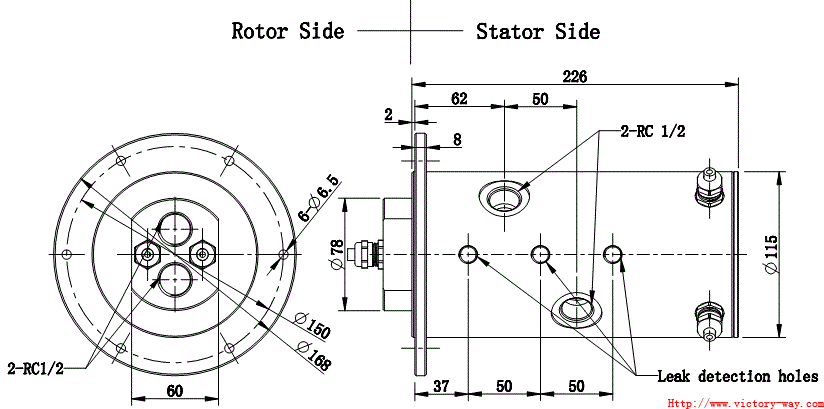

Drawing：
Feature:
1) High quality bearing on the both side of shaft for smoothly operate, without any maintain.
2) High quality sealing material for long life circle.
3) Special finished shaft provide a excellent wear resistance
4) Al, Bass, stainless steel body for option.
5) Special designed leak detection holes.
6) Stator side flange for setup
Technical spec:
|
Speed
|
200Rpm
|
|
Operate temperature
|
-30～90℃
|
|
protect degree
|
IP65
|
|
Housing
|
Al alloy
|
Part A:(Electornic Slip Rings)
|
Channels
|
12 rings（for signal）
|
|
Operation Voltage
|
0~240VAC/DC
|
|
Current
|
2A/Ring
|
|
Contact material
|
Precious Metal
|
|
Electric Nosice
|
Max.40m Ω
|
|
Dielectric strength
|
500VAC@50Hz,60s
|
|
Insulation resistance
|
500MΩ @600VDC
|
Part B:(Rotary Joint)
|
Channels
|
2 Ways
|
|
Pressure
|
1.6Mpa Max
|
|
Media
|
compressed air/ vacuum
|
Application
●Rotary index tables, test equipment
●Robotics,process equipment and rotary sensors.
●liquid filling machine
●Medical equipment;
Option：
●Water. compressed air. hydraulic fluid can be carried!
●Speed up to 2500 RPM.
●Pressure up to 25Mpa
●Operate Temp:-30-200℃.
●single channel,Multi channels.
●Devidment design，easy to assembly
●Flange for setup
