Slip Ring with 12.7mm Through-Bores |
|
| Product name : Slip Ring with 12.7mm Through-Bores |
| Item : VT12 |
| Details : |
T12 slip ring capsule is a standard silpring with a 12.7mm (0.5 Inch) through-bore for routing of hydraulic or pneumatic lines or driver shaft,this design features long life,fiber Precious metal brush contact technology for ultimate performancein many challenging applications. With aluminum body,double precision roller bearings provide smoother running,lower torqueand lower electrical noise than competitive slip rings.

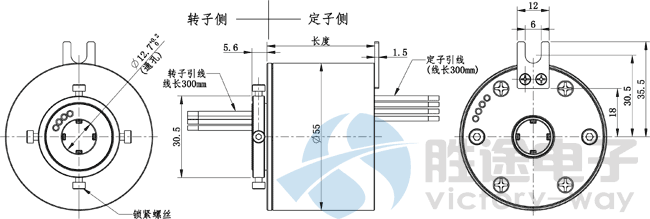

A.)Outline (Unit:mm)
| Internal diameter(mm) |
12.7 |
| Outer diameter (mm) |
55 |
| Length(mm) |
L=20.35+P*3.0+S*2.0 |
P：Channels For Power （10A）
S：Channels For Signal （5A）
B.)Specification
| Voltage |
380V AC/DC |
| Current Rating |
5,10A/Ring |
| Speed |
250PRM |
| Insulation Resistance |
1000MΩ@500VDC |
| Dielectric Strength |
AC 600V@60Hz, 60S |
| Electrical Nosie |
70 milliohms MAX @5rpm,50milliamps,6V DC |
| Contact Material |
Precious metal |
| Lead Size/Type |
0.5mm2 Teflon wire |
| Operate Temp |
-20℃～+80℃ |
| Storage Temp |
-30℃～+90℃ |
C.)Feature
●12.7mm through-bore,Compact 55mm outside diameter
●Flexibility Module design.
●Multiple circuit confgurations for power & data signals.
●Speeds up to 2500 rpm max.(Option)
●Without any maintain.
D.)Application
●Rotary index tables, test equipment,cable reels.
●Robotics,process equipment and rotary sensors.
●Exhibit / display equipment
●Medical equipment;
E.)Option
●Higher voltage and current (Up to 100A,2000V)
●Higher speed (Up to 5000Rpm)
●Wider range of temperature (-60~200℃)
●Higher protection class (up to IP67 & Explosion-proof type)
●Style of lead exits
●Flange for install
|
 |
