Mini through hole slip ring |
|
| Product name : Mini through hole slip ring |
| Item : VSR-TC15-12 |
| Details : |
Description
TC serial slip ring capsule is a micro slip ring, there have a 7,or15,or20 mm through-bore in the center of the shaft, it have the goodness of capsule & through bores slip ring ,this design features long life & low cost, fiber Precious metal brush contact technology for ultimate performance in many challenging applications. With aluminum body, double precision roller bearings provide smoother running, lower torque and lower electrical noise. it is suitable for signal & low power transfer.

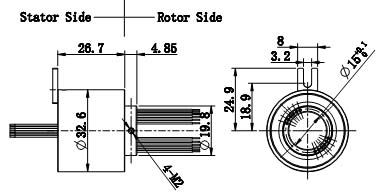

Outline
Encode Rules
Feature
| |
7,15,20mm through-bore, provid 12 or 24 ways |
| |
Compact miniature design, small size fit for harsh space. |
| |
Multiple circuit confgurations for power & data signals. |
| |
Hybrid FORJ or High Frequency rotary joint |
| |
Aluminium alloy shaft and body for excellent shielding |
| |
without any maintain. |
Specification
|
Speed
|
300 RPM |
| Voltage |
240 VAC/DC |
| Working Temp |
-30 ℃～+80 ℃ |
| Current |
2A/way |
| Dielectric Strength |
600 V DC @ 50Hz |
| Insulation Resistance |
>=500 MΩ @ 600 V AC |
| Electrical Nosie |
less than 60 mΩ |
| Body material |
Aluminium alloy |
Typical Application
| |
Rotary index tables, test equipment |
| |
Robotics, process equipment and rotary sensors |
| |
Exhibit / display equipment |
| |
Medical equipment |
Option
| |
Higher voltage and current capacity |
| |
Higher speed |
| |
Wider range of temperature |
| |
Higher protection class |
| |
Style of lead exits |
| |
Flange for install |
|
 |
←[Previous : VSR-TC15-24]
[Next : VTC7]→
|
|
Mini Through-Bores Slip rings（TC）
