6 ways Standard Capsule Slip ring |
|
| Product name : 6 ways Standard Capsule Slip ring |
| Item : VSR-SC6 |
| Details : |
SC slip ring capsule is a standard,off-the-shelf unit that uses gold contacts at the rotary interface.Color-coded lead wires are used on both the stator and rotor for simplifed electrical, With double Contacts & double precision roller bearings,It utilizes 90°V-groove rings to provide smoother running,lower torque and lower electrical noise than competitive slip rings. Flame-retardant plastic shell,6, 12, and 24 circuit models for Power and /or signal.

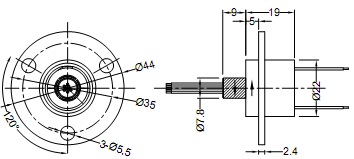

A.）Outline （Units：mm）
B.）Specification
| Channels |
1~6 Ways |
| Voltage |
240V AC/DC |
| Current Rating |
2A/Ring |
| Speed |
300PRM |
| Insulation Resistance |
1000MΩ@500VDC |
| Dielectric Strength |
AC250V@60Hz, 60S |
| Electrical Nosie |
60 milliohms MAX @ 5~10 rpm,50milliamps,6V DC |
| Lead Size/Type |
AWG28 Sliver plated coppe,Type ET Teflon |
| Lead Lengths |
250mm |
| Operate Temp |
-20℃～+80℃ |
| Storage Temp |
-30℃～+90℃ |

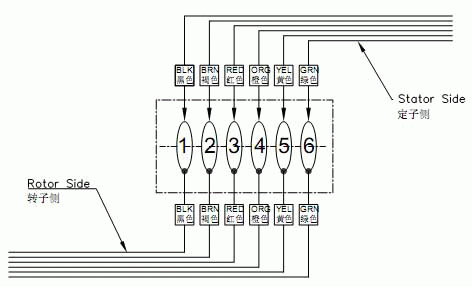

C.）Wire Map
D.）Feature
● Compact miniature design, small size fit for harsh space.
● Double precision roller bearings for lower torque & long life.
● Signal and power Can be combined in same slip ring.
● More install flange for option.
E.）Application
● CCTV monitoring system;
● Medical equipment;
● Robotics;
● Laboratory equipment;
F.）Option
●Higher speed
●Metal shell
●Available connecter and Heat-shrink tube
●Lead length can be appointed

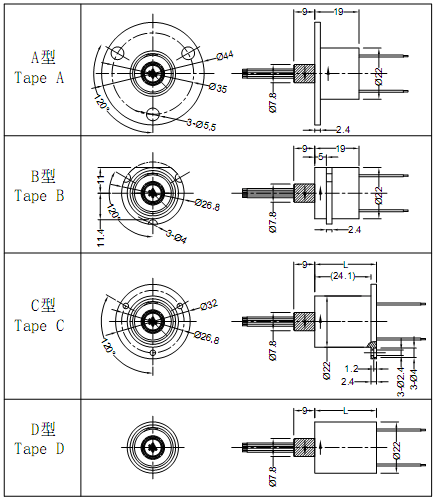

G:）Other Flange （including, without limitation to those types）
 |
 |
